Electrical Control Panels
Nine panel types, engineered and built in-house at our Nashik facility to your load and site requirement.
APFC Panel
Our Automatic Power Factor Correction (APFC) panels monitor reactive power in real time and switch capacitor banks in and out to keep your power factor close to unity — cutting utility penalties and reducing line losses.
| Voltage | 415V, 3 Phase, 50Hz |
|---|---|
| Capacitor steps | As per load requirement |
| Enclosure | CRCA sheet, powder coated, floor / wall mounted |
| Protection | MCCB / MCB incomer, capacitor duty contactors |
PCC Panel
Power Control Centre panels handle incoming supply from transformer or DG and distribute it to downstream MCCs, feeders and outgoing circuits, with metering and protection built in.
| Voltage | Up to 415V / 690V, 3 Phase |
|---|---|
| Incomer | ACB / MCCB as per current rating |
| Busbar | Copper, sized to full load current |
| Metering | Ammeter, voltmeter, energy meter (optional) |
MCC Panel
Motor Control Centre panels bring together starters, protection and monitoring for multiple motors in one enclosure — built for DOL, star-delta or soft-start configurations as required.
| Starting method | DOL / Star-Delta / Soft Starter |
|---|---|
| Protection | Thermal overload, single phasing preventer |
| Feeders | Sized as per motor list & future spare feeders |
VFD Drive Control Panel
Variable Frequency Drive panels give smooth, controlled starting and variable speed operation for pumps, fans, conveyors and compressors — reducing mechanical stress and energy consumption.
| Drive rating | As per motor HP / kW |
|---|---|
| Control | Local / Remote, with bypass option |
| Cooling | Panel ventilation / AC as per site ambient |
ATS Panel
Automatic Transfer Switch panels detect mains failure and switch the load to DG supply automatically, then transfer back once mains is restored — keeping critical loads running without manual switching.
| Transfer type | Mains-DG / Mains-Mains |
|---|---|
| Switching device | MCCB / Contactor based, as per rating |
| Time delay | Adjustable transfer & re-transfer timers |

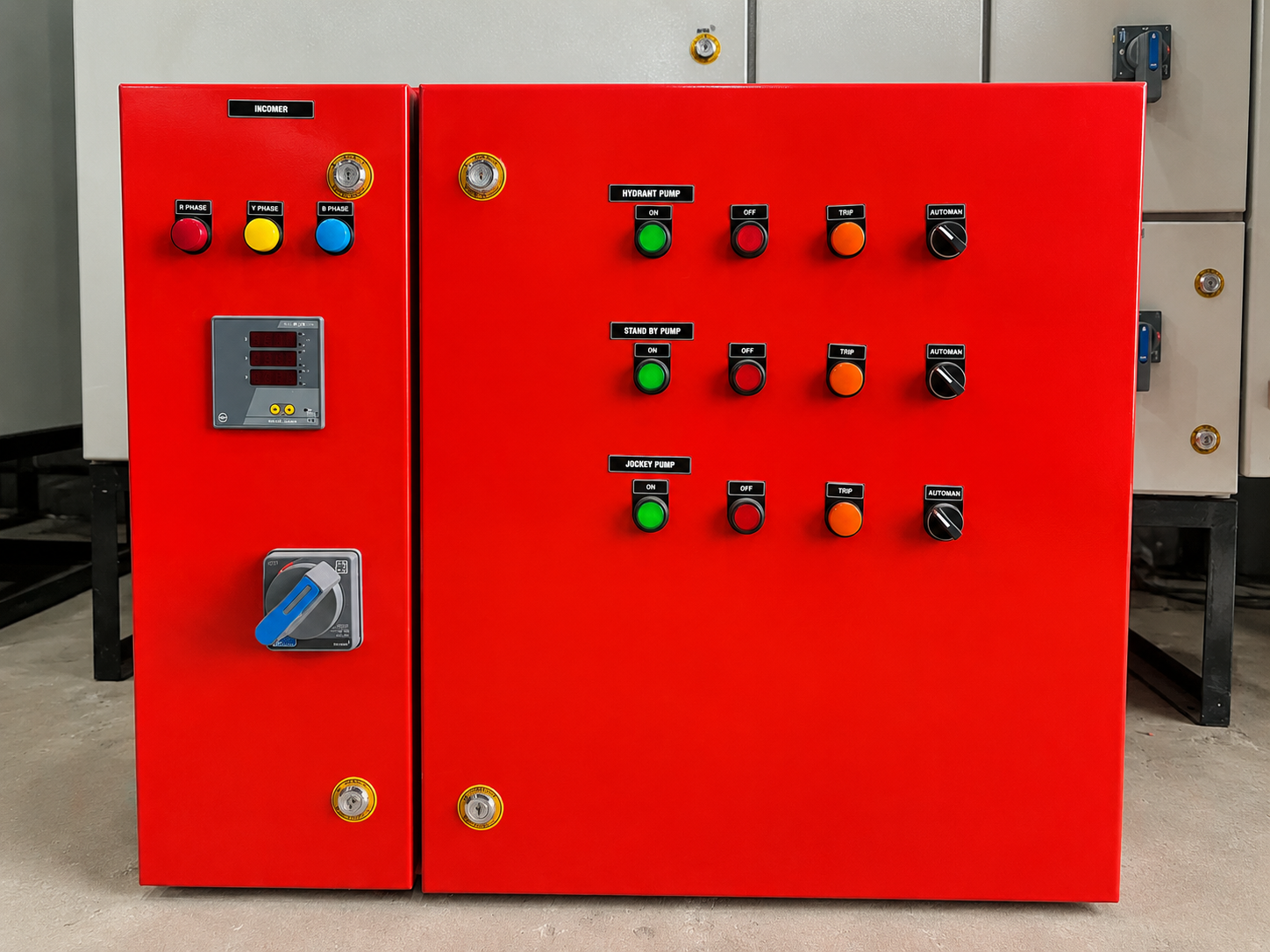

Fire Fighting Panel
Control panels for fire pumps and jockey pumps, built per fire safety norms so your fire protection system is ready to respond the moment it's needed.
| Pumps controlled | Main fire pump, jockey pump, (diesel pump control on request) |
|---|---|
| Indication | Pump running / fault / auto-manual status |
| Compliance | Built to standard fire pump control practice |
PLC Panel
Programmable Logic Controller panels for automated sequencing and process control, wired and tested with your chosen PLC brand and I/O count.
| I/O count | As per process requirement |
|---|---|
| HMI | Optional touch-screen HMI integration |
| Communication | Modbus / Ethernet as required |
ACDB / Solar ACDB
AC Distribution Boards distribute incoming power to lighting, plug and machine circuits. Our Solar ACDBs are built specifically for solar PV plant output — with surge protection sized for inverter output.
| Type | General ACDB / Solar ACDB (grid-tie) |
|---|---|
| Protection | MCB / RCCB, surge protection device (Solar ACDB) |

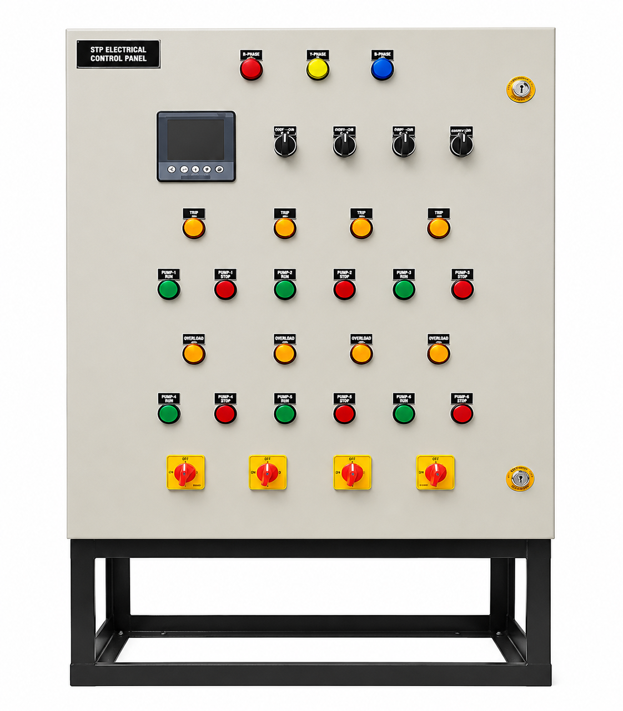

STP Panel
Control panels for Sewage Treatment Plants, automating blower and pump sequencing, aeration cycles and level-based control to keep the plant running unattended.
| Control | Timer / level-based automatic sequencing |
|---|---|
| Equipment controlled | Blowers, transfer pumps, dosing pumps |
Not sure which panel you need?
Share your load list or site drawing and we'll recommend the right build.
